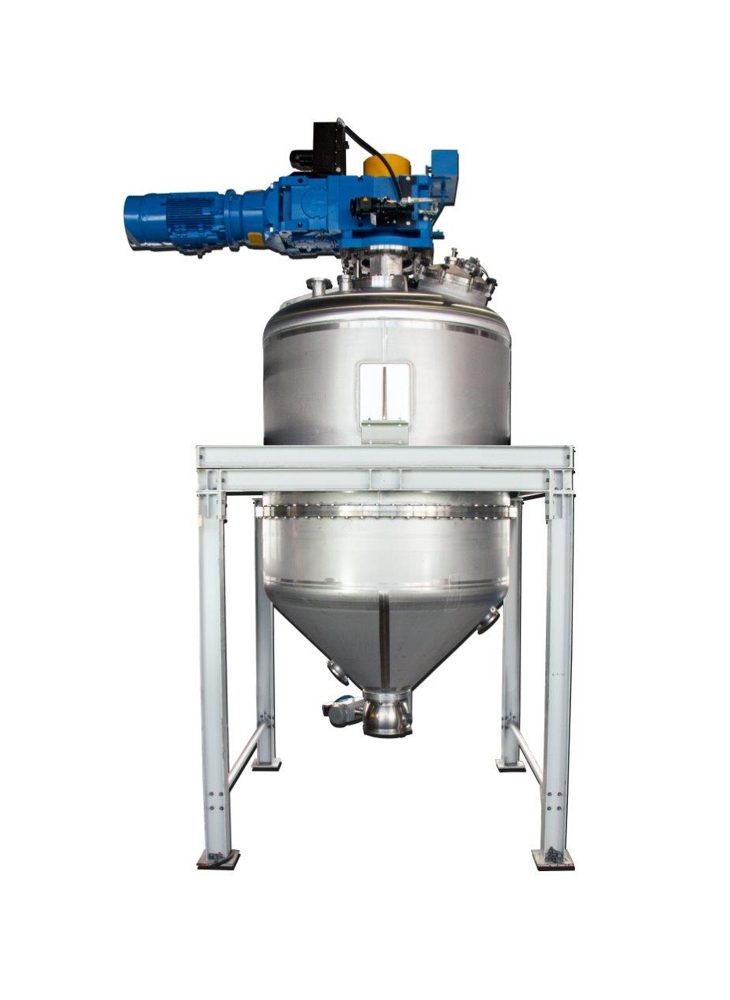

Cylindro Conical Mixer

The Cylindro Conical Mixer CCM with a central shaft agitator is a batch mixer for more standarized mixing applications with rather low TCO (Total Cost of Ownership). With its robust central-shaft agitator it is pricewise an alternative to the conical screw mixer and besides powder/bulk solids also suitable for pasty products. Due to its compact design the mixer is particularly suitable when space is limited, especially for a narrow room height.

Special properties for the customer’s benefit:


• Short mixing times because all product of the batch is permanently in motion
• Speed of the helix mixing element can be adapted to the process needs
• Useful working volume from 15 – 70% of the gross volume
• Adjustable clearance between helix/blade and vessel wall or bottom outlet
• Wide range of applications for powders, liquids and pastes
• Very good discharging
• Shaft sealing and bearing are installed outside of the mixing chamber
• ATEX design and EHEDG compliant design
